Dosimeter-radiometer MKS-18 alpha, beta, X-ray, gamma and neutron radiation

Dosimeter-radiometer MKS-08
Dosimeter-radiometer MKS-18
Multichannel dosimeter-radiometer MKS-2020
Radiometer UMF-2020
Radiometer RAS-01-TE
Radiometer RGG-03-TE

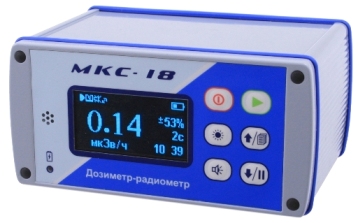

Console UIK-09   Console UIK-10, UIK-11

MKS-18: UIK-09 with embedded detector
BDBG-201-RS (additional option)

Console UIK-10, UIK-11



Purpose

Portable multifunctional professional device is intended to measure (depending on the set of radiation detectors):

  • ambient dose equivalent rate and Ḣ*(10) and ambient dose equivalent Ḣ*(10): of continuous gamma-radiation;
  • ambient dose equivalent rate and Ḣ*(10) and ambient dose equivalent Ḣ*(10) of X-ray and gamma-radiation (including pulse);
  • ambient dose equivalent rate and Ḣ*(10) and ambient dose equivalent Ḣ*(10) of neutron-radiation;
  • flux density of alpha-, beta-, gamma-radiation.

Features:

  • consists of radiation detector (depending on the type of ionization radiation) and one of consoles (at the Customer's choice): UIK-09 (a metal case, built-in accumulator block), UIK-10 (a plastic case, built-in accumulator block, OLED-display), UIK-11 (a plastic case, built-in accumulator block, LCD-display).
  • console UIK-09 (at the Customer's choice) can be equipped with an embedded detector BDBG-201-RS, which expands the functionality;
  • automatic detection of the type of the connected detector and activation of measurement modes for this type of detector;
  • a possibility to select the measurement algorithm and set the threshold setting for each measurement mode;
  • audible and visual alarms of exceeding the limits during measurements;
  • simplicity and reliability, the ability to equip with additional detector;
  • a short time of measurement and fast automatic adaption to change in radiation situation;
  • unique algorithms of search, localization of sources and fields of ionization radiation;
  • work in a wide range of temperatures in the field, carrying logs of wells and boreholes radiation survey of the area with geo-references, stored in the nonvolatile memory of up to 4000 measurement results with possibility of transfer to PC and imposition to electronic maps (additional option);
  • embedded communication module Bluetooth which provides data exchange between console and detector by auxiliary device MOB-01 (additional option).

Downloads

Dosimeter-radiometer MKS-18 (1.5 )

Main tasks are solved by dosimeter-radiometer MKS-18

  • Measurement of alpha-radiation
    Modifications of dosimeter-radiometer
    (type of radiation detector)
    Measurement range
    flux density of alpha-radiation
    MKS-18-**1 A (BDZA-96-RSF) 0,1 - 1105min-1cm-2
    MKS-18-** t (BDZA-96t-RS) 0,1 - 5106min-1cm-2
    MKS-18-** d (BDZA-96d-RSF) 0,1 - 3104min-1cm-2
  • Measurement of beta-radiation
    Modifications of dosimeter-radiometer
    (type of radiation detector)
    Measurement range
    flux density of beta-radiation
    MKS-18-** B (BDZB-96-RSF) 1 - 5105min-1cm-2
    MKS-18-** Bb (BDZB-96b-RS) 5 - 1104min-1cm-2
    MKS-18-** Bk (BDZB-400-RSF) 5 - 1105min-1cm-2
    MKS-18-** Bs (BDZB-96s-RS) 5 - 1105min-1cm-2
  • Measurement of alpha- and beta-radiation
    Modifications of dosimeter-radiometer
    (type of radiation detector)
    Measurement range
    flux density of alpha-radiation
    Measurement range
    flux density of beta-radiation
    MKS-18-** Ps (BDPS-96-RSF) 0,1 - 1105min-1cm-2 1 - 5105min-1cm-2
  • Measurement of ambient dose equivalent rate and Ḣ*(10) and ambient dose equivalent Ḣ*(10) of gamma radiation. Measurement of flux density of gamma radiation
    Modifications of dosimeter-radiometer
    (type of radiation detector)
    Measurement range of
    ADER of gamma-radiation
    Measurement range of
    ADE of gamma-radiation
    Flux density of
    gamma-radiation
    MKS-18-** (BDMG-96-RS) 0,05 µSv/h - 10 Sv/h 0,1 µSv - 10 Sv -
    MKS-18-** (BDBG-201-RS)*
    *an embedded detector BDBG-201-RS is used only in console UIK-09 (option)
    0,05 µSv/h-10 Sv/h 0,1 µSv-10 Sv -
    MKS-18-** S (BDBG-96s-RSF) 0,005 - 100 µSv/h 0,1 µSv - 10 Sv 1 - 8000 s-1·cm-2
    A radiation mapping
    MKS-18-** P (BDPG-96-RSF) 0,03 - 300 µSv/h - 3 - 3104 s-1·cm-2
    MKS-18-** B (BDVG-96-RSF) 0,03 - 30 µSv/h - 3 - 3104 s-1·cm-2
  • Measurement of ambient dose equivalent rate and Ḣ*(10) and ambient dose equivalent Ḣ*(10) of X-ray and gamma radiation
    Modifications of dosimeter-radiometer
    (type of radiation detector)
    Measurement range of
    ADER of X-ray
    and gamma-radiation
    Measurement range of
    ADE of X-ray
    and gamma-radiation
    MKS-18-** Gm (BDKS-96-RS) 0,01 µSv/h - 30 Sv/h 0,1 µSv - 10 Sv
  • Gamma ray logging. Measurement of ambient dose equivalent rate of gamma radiation in the boreholes and pits
    Modifications of dosimeter-radiometer
    (type of radiation detector)
    Measurement range of
    ADER of gamma radiation
    Measurement range of
    flux density of gamma radiation
    MKS-18-** K (BDKG-96-RS) 5 - 1104 µR/h 20 - 4104 s-1
  • Measurement of ambient dose equivalent rate and Ḣ*(10) and ambient dose equivalent Ḣ*(10) of gamma radiation. Measurement of flux density of alpha and beta radiation
    Modifications of
    dosimeter-radiometer
    (type of radiation detector)
    Measurement range
    of ADER of gamma
    radiation
    Measurement range
    of ADE of gamma
    radiation
    Flux density of
    beta radiation
    Flux density of
    alpha radiation
    MKS-18-** Gb
    (BDKS-96s-RS)
    0,1 µSv/h
    - 1 mSv/h
    0,1 µSv - 10 Sv 5 - 1105 min-1cm-2 1 - 1105 min-1cm-2
  • Measurement range of ambient dose equivalent rate and Ḣ*(10) and ambient dose equivalent Ḣ*(10) of neutron radiation. Measurement of flux density of neutron radiation
    Modifications of dosimeter-radiometer
    (type of radiation detector)
    Measurement range
    of ADER of neutron
    radiation
    Measurement range
    of ADE of neutron
    radiation
    Measurement range
    flux density of neutron
    radiation
    MKS-18-** N (BDMN-96-RSF) 0,1 µSv/h - 0,1 Sv/h 0,1 µSv - 10 Sv 0,1 - 1105 s-1cm-2
    MKS-18-** Nk (BDKN-96-RS) 0,1 µSv/h - 0,1 Sv/h 0,1 µSv - 10 Sv 0,1 - 1105 s-1cm-2

1 - a type of measurement console

Radiation detectors

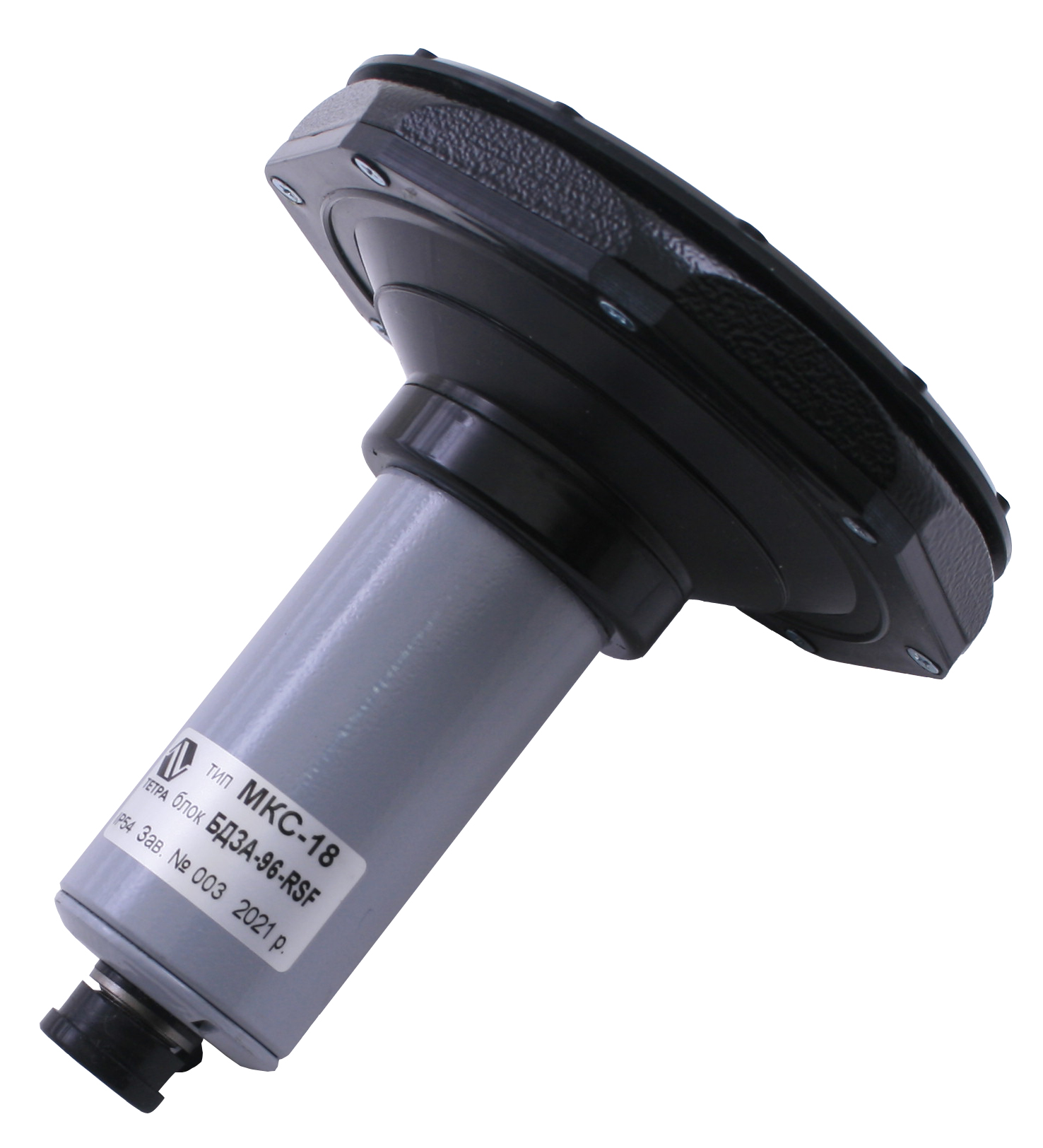

BDZA-96-RSF - α

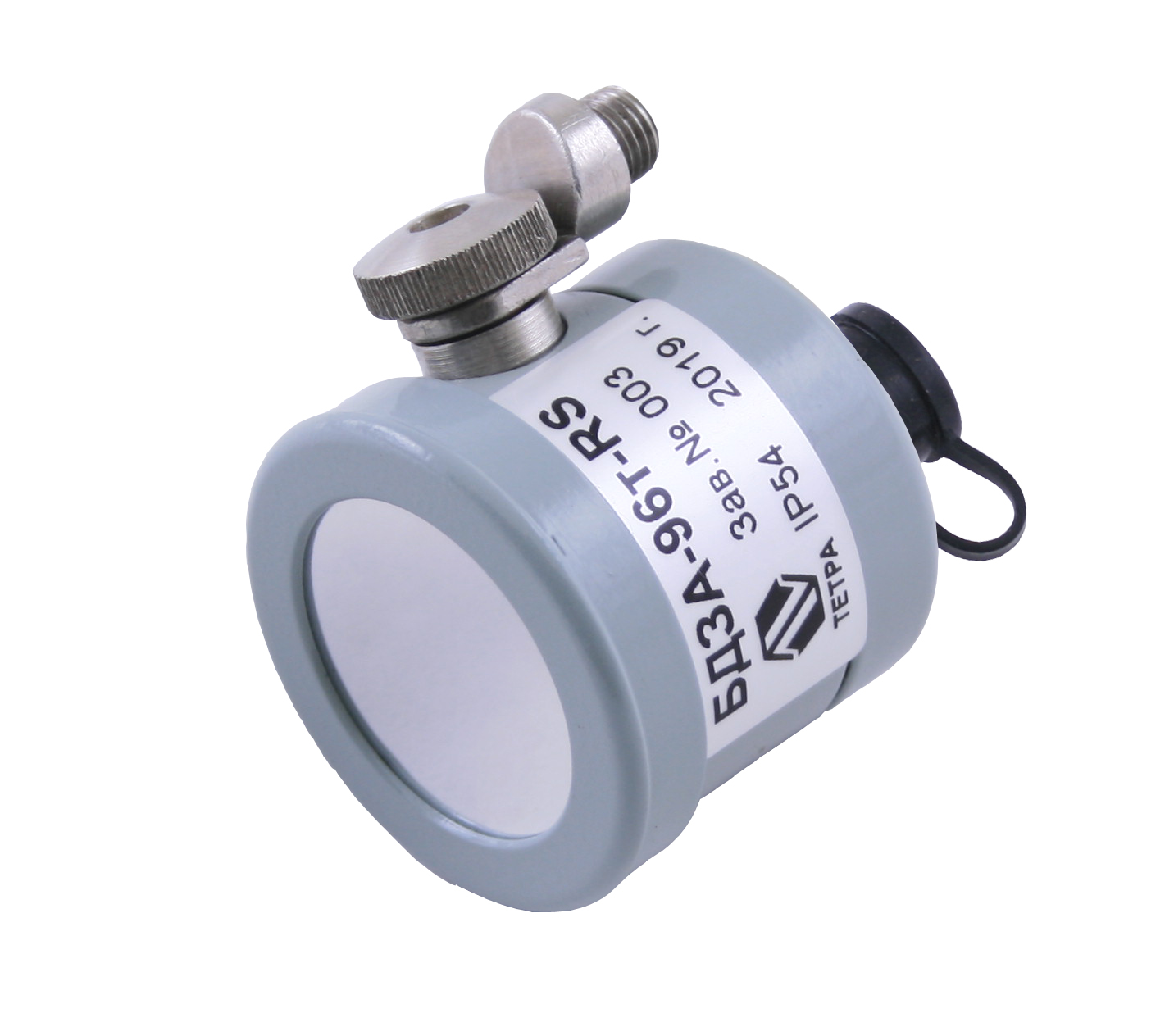

BDZA-96t-RS - α

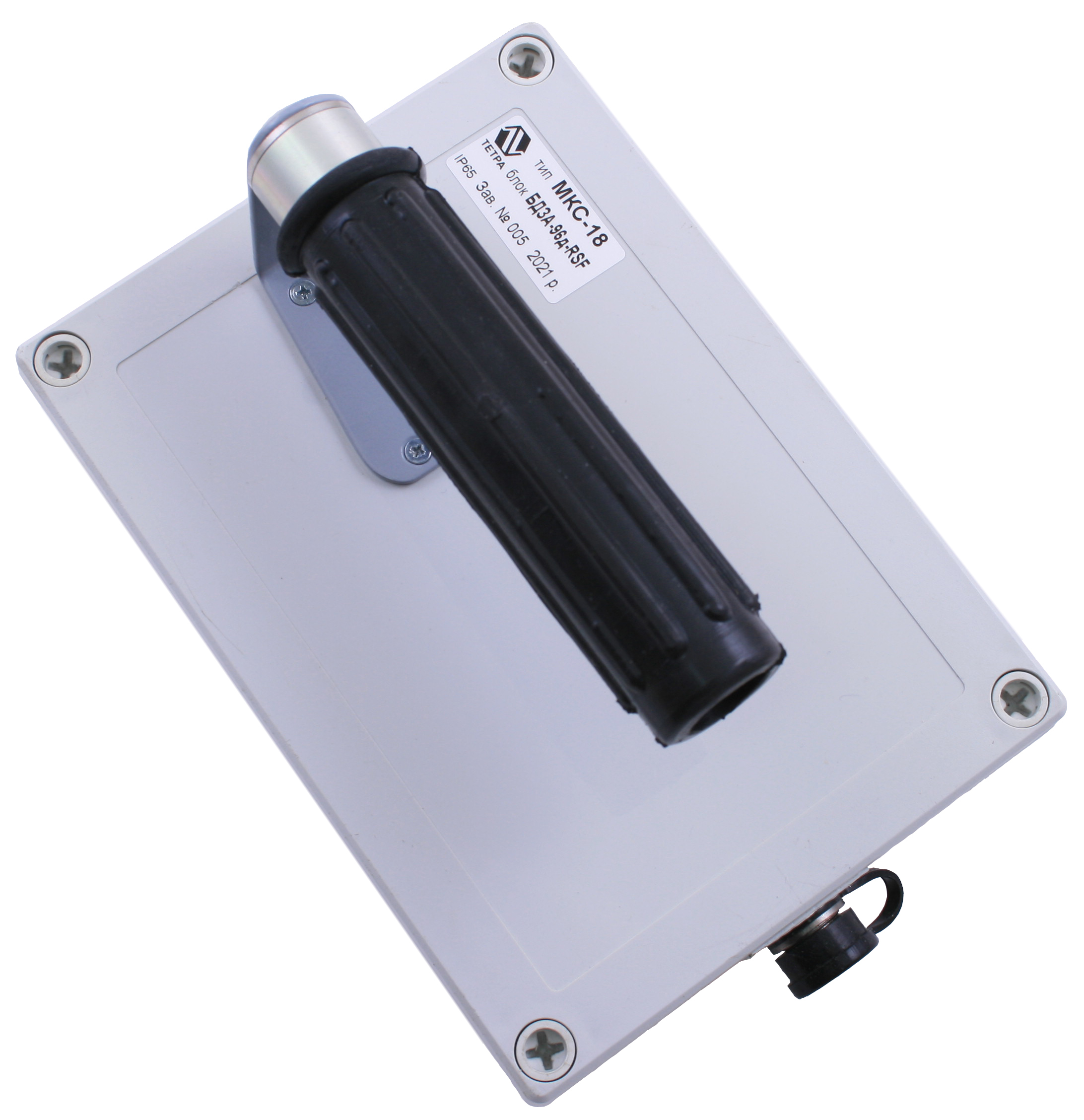

BDZA-96d-RSF - α

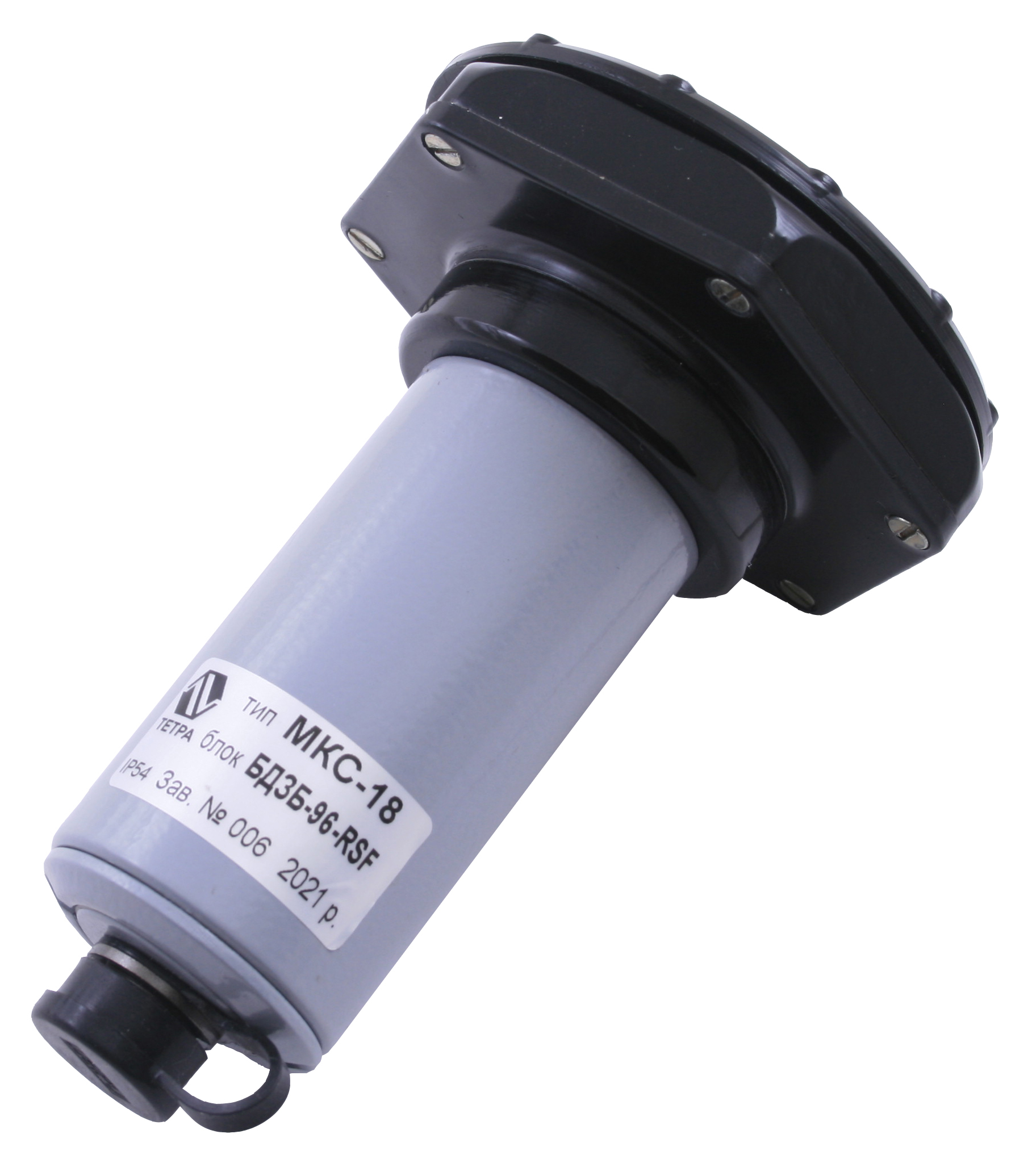

BDZB-96-RSF - β

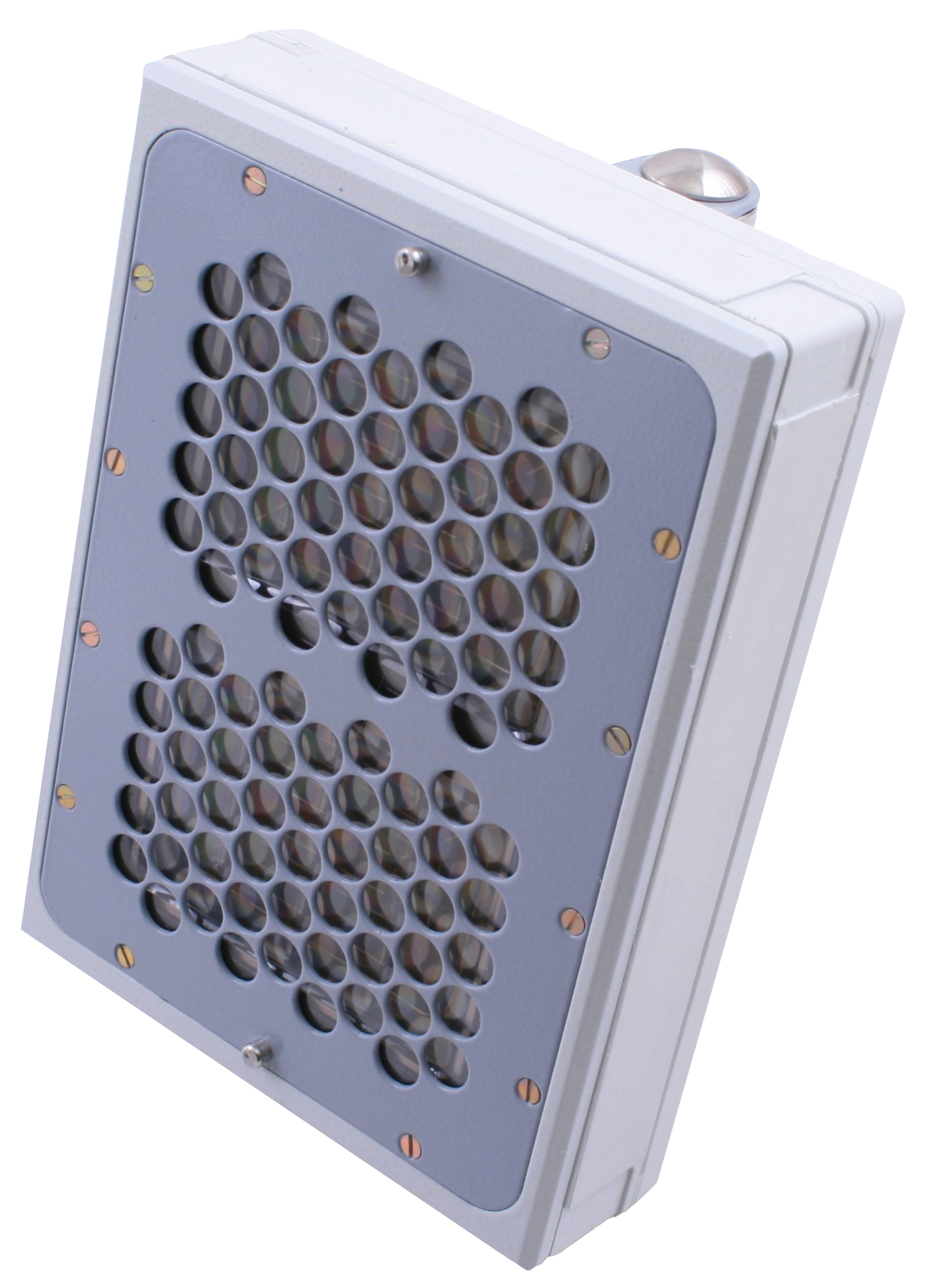

BDZB-96b-RS - β

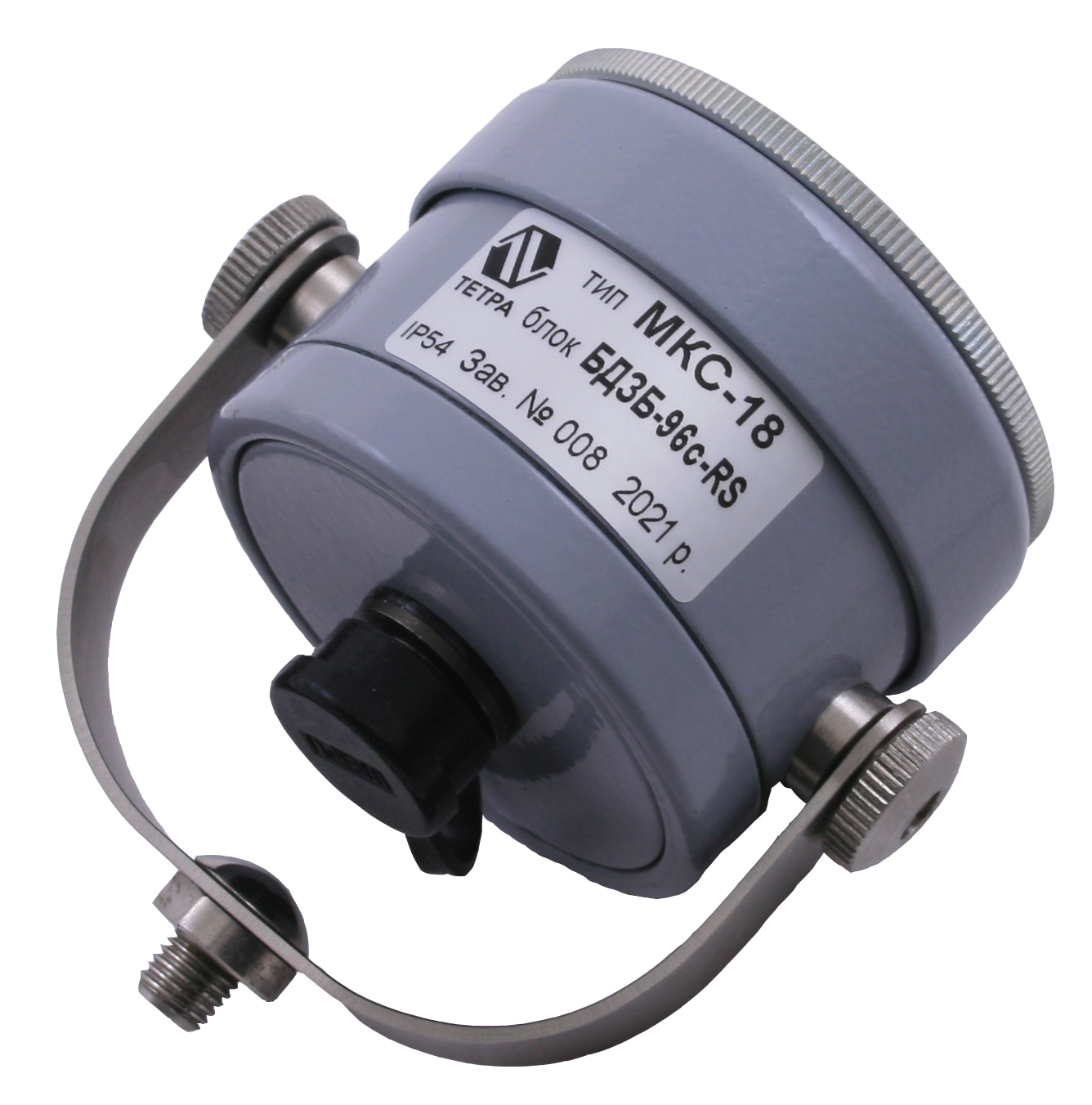

BDZB-96s-RS - β

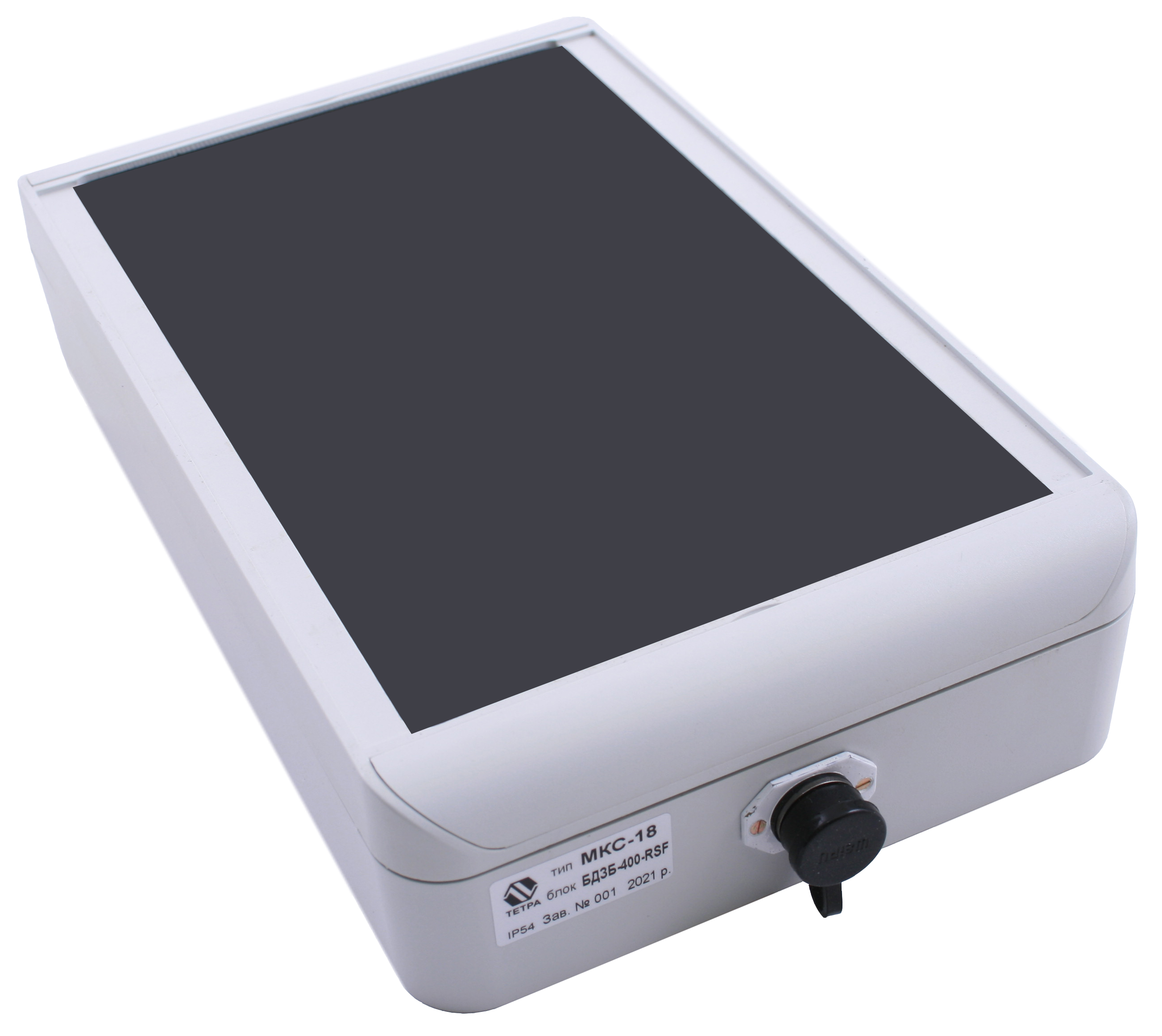

BDZB-400-RSF - β

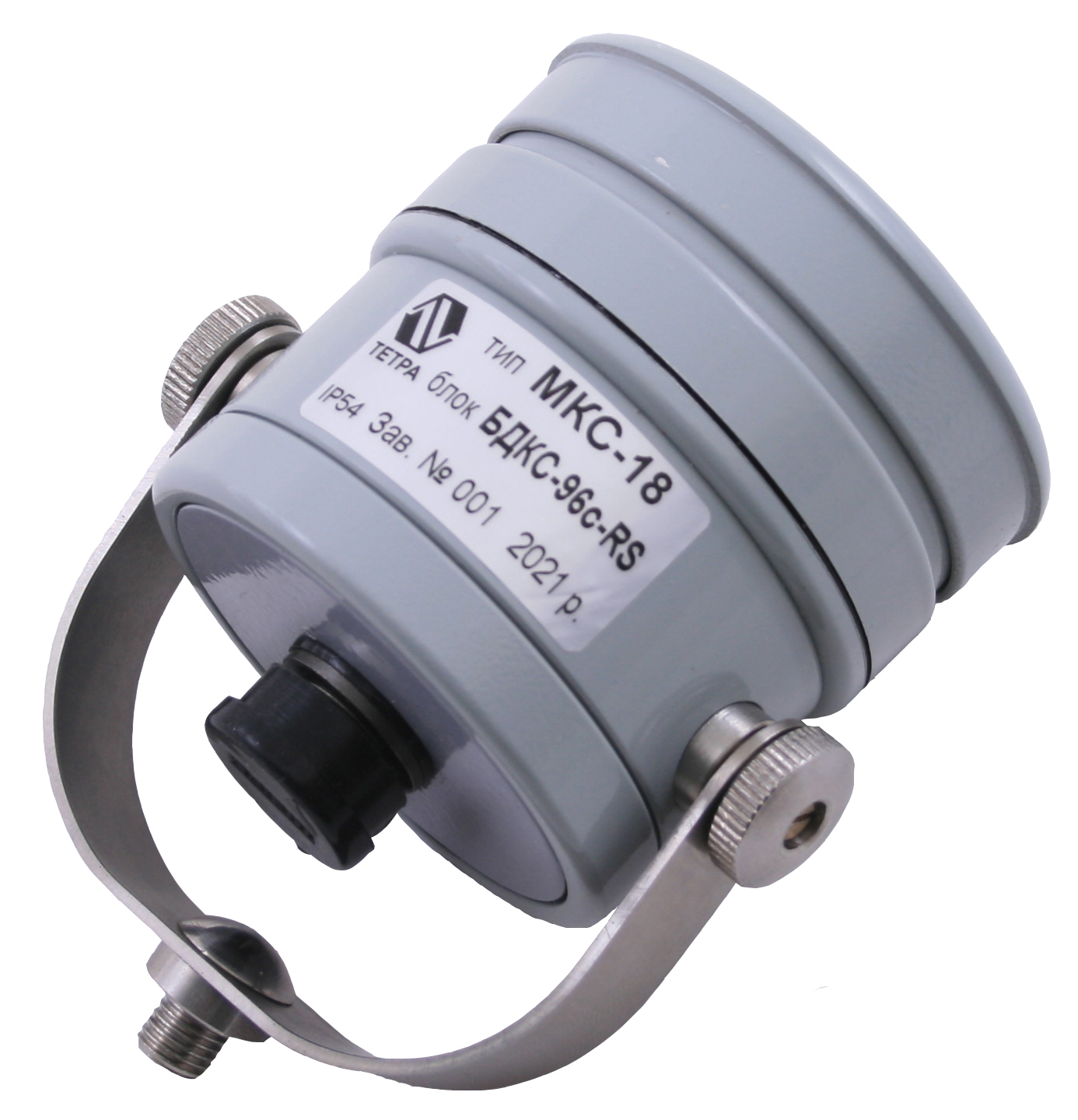

BDKS-96s-RS - α, β, γ

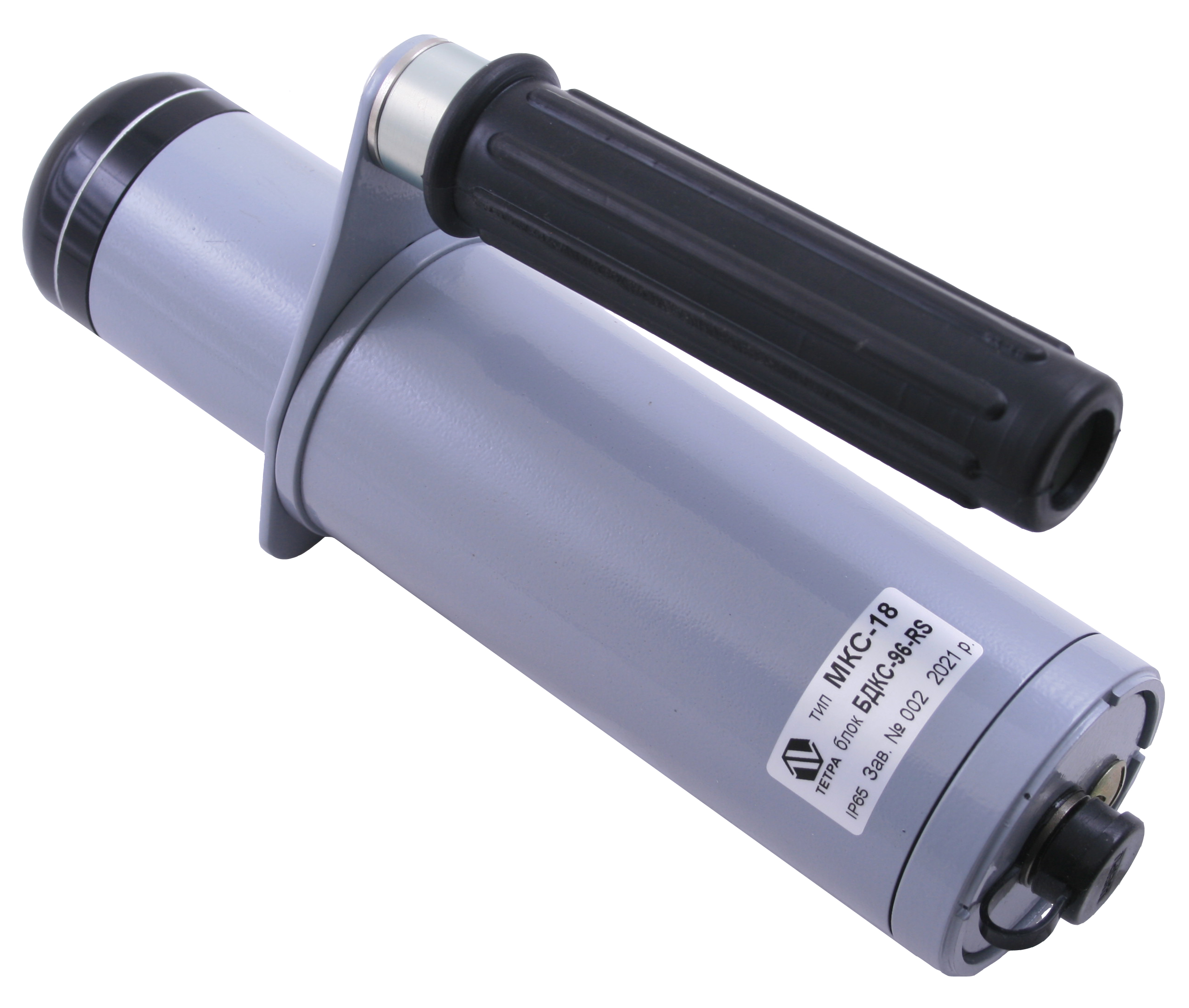

BDKS-96-RS - χ, γ

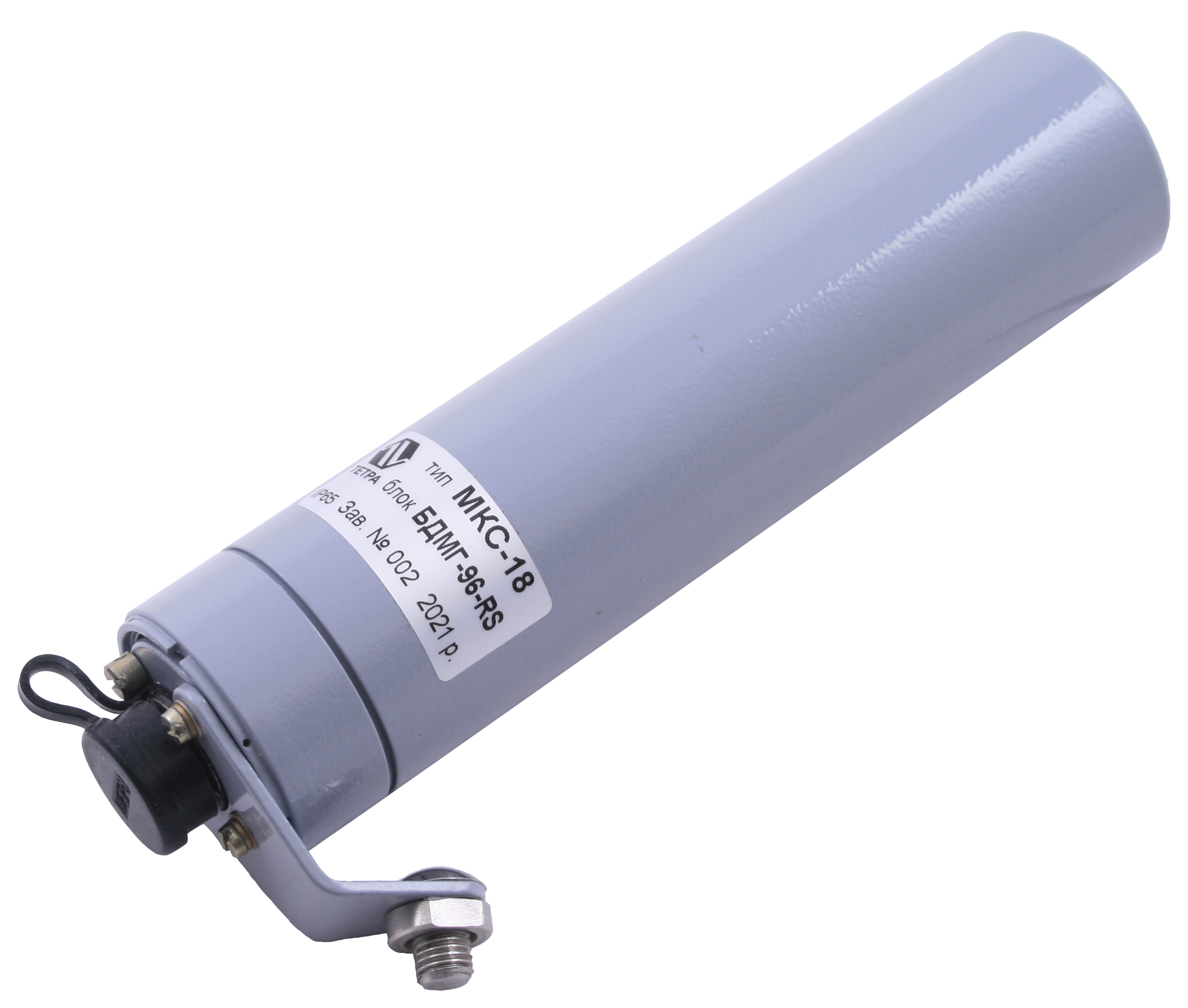

BDMG-96-RS - γ

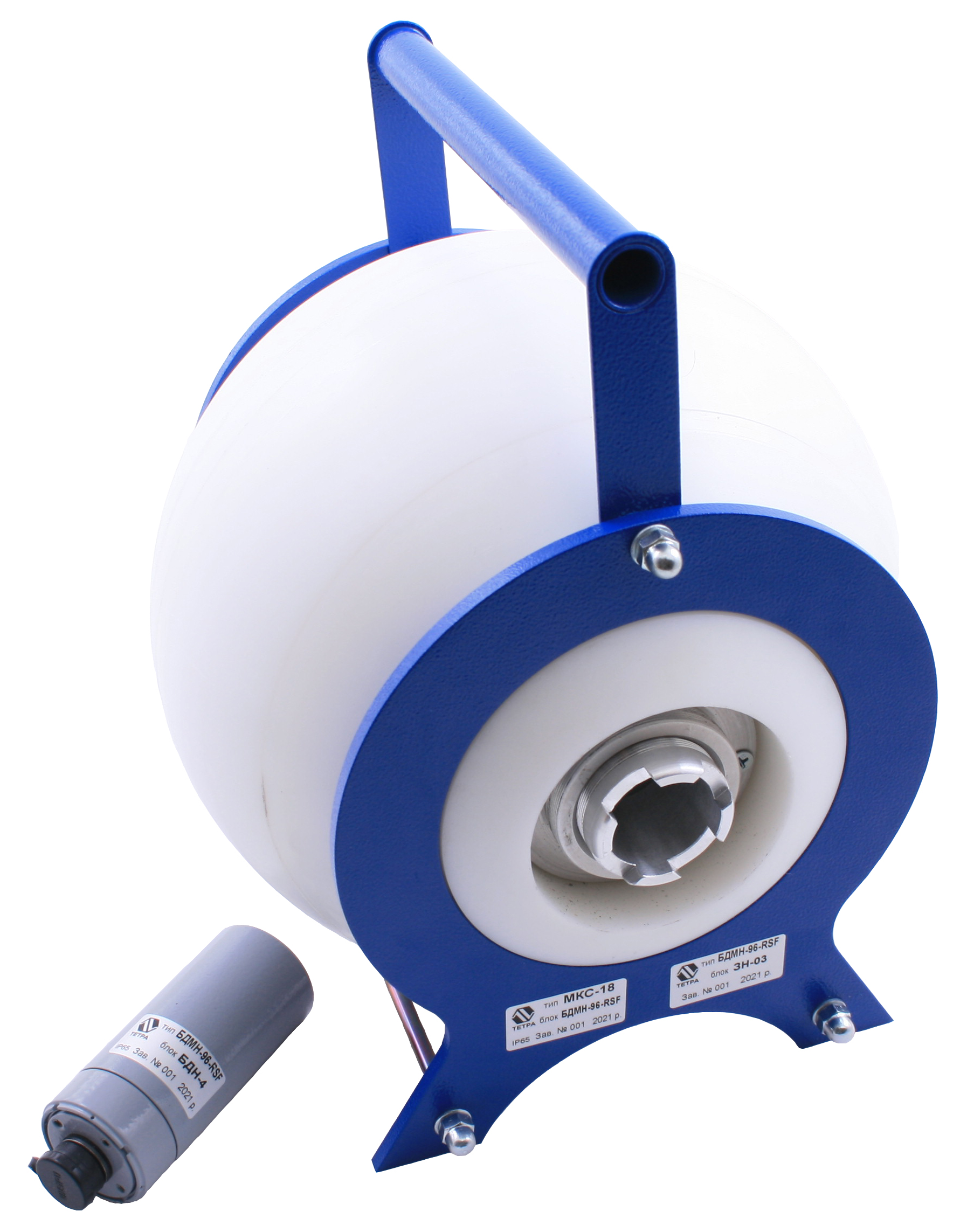

BDMN-96-RSF - η

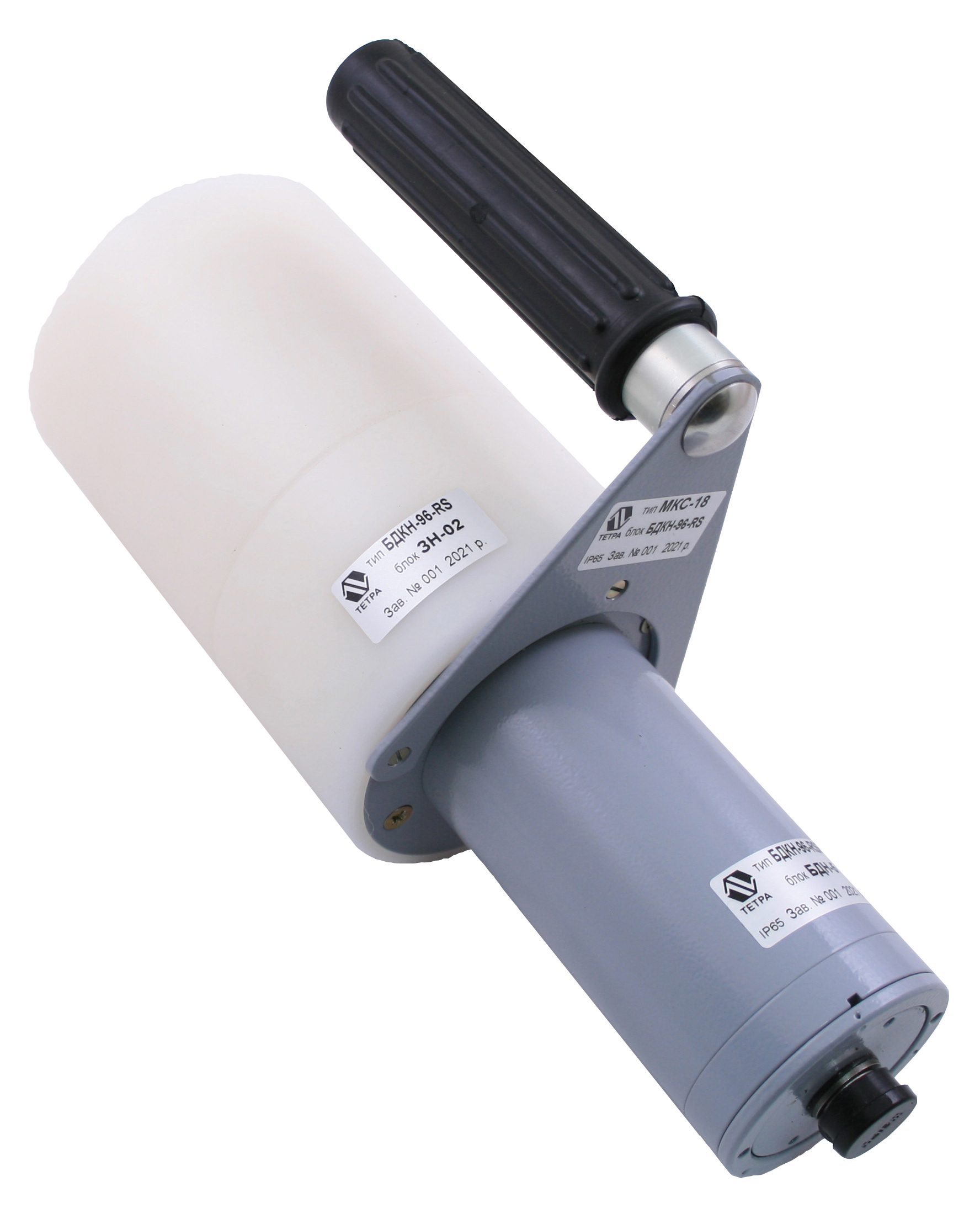

BDKN-96-RS - η

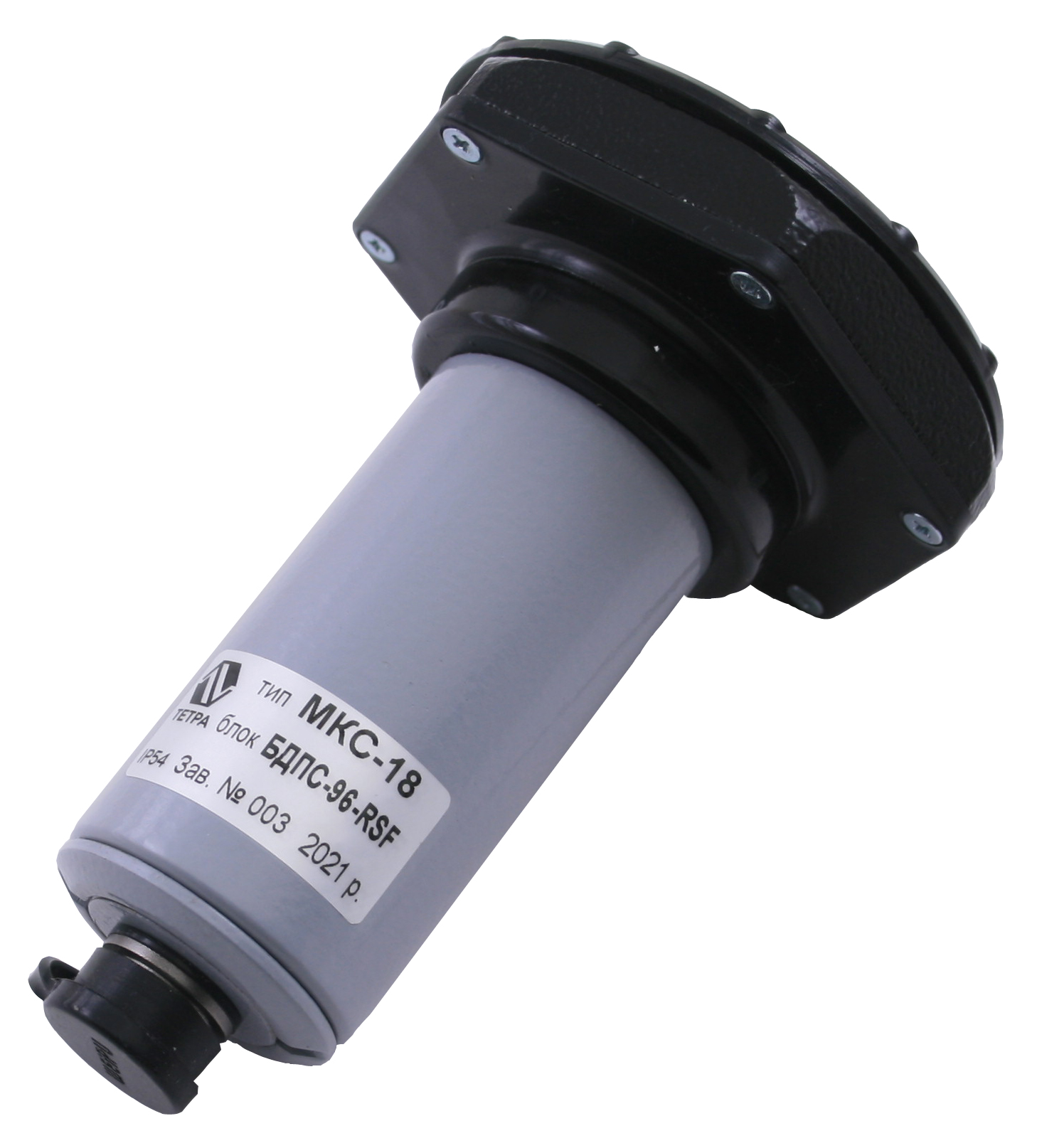

BDPS-96-RSF - α, β

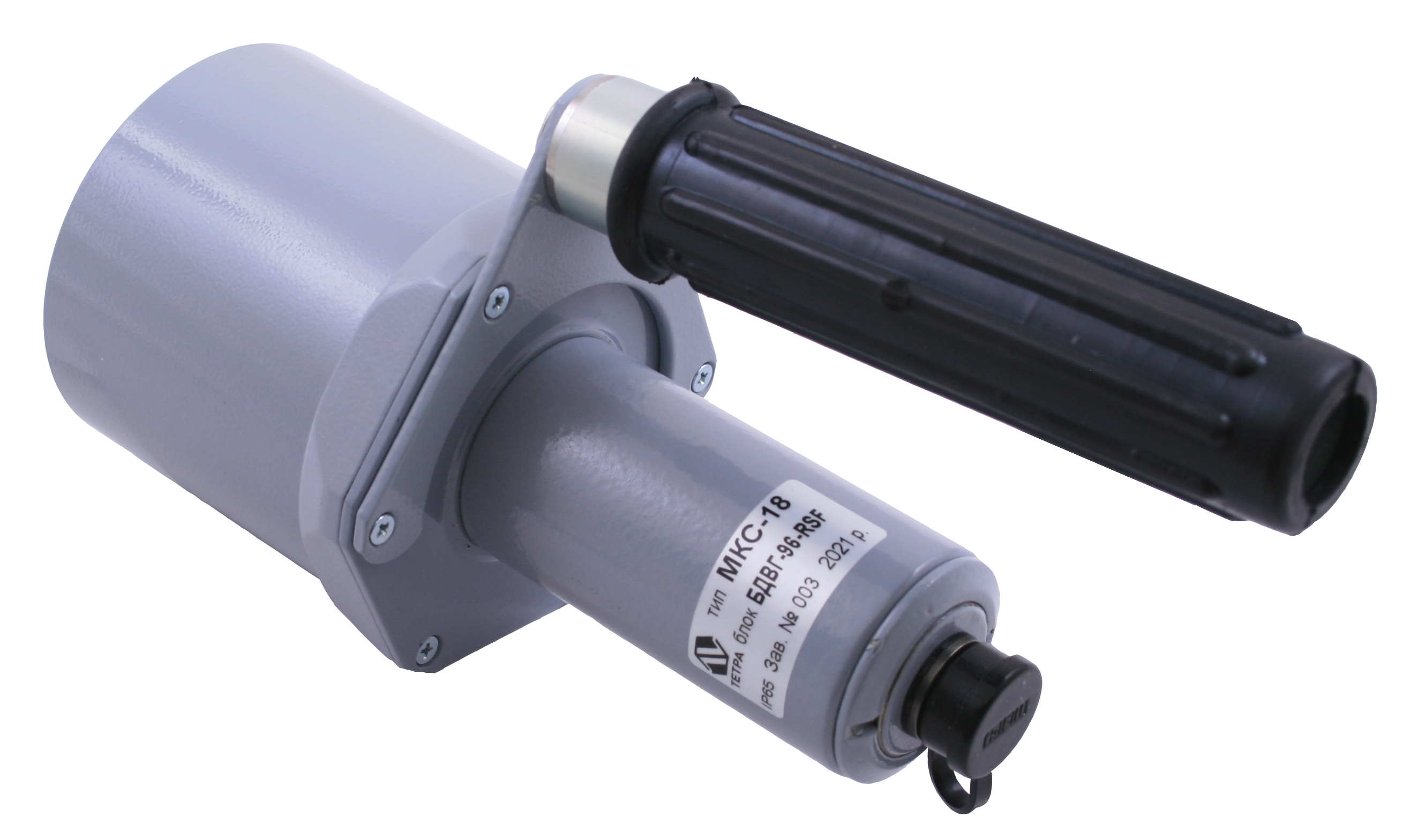

BDVG-96-RSF - γ

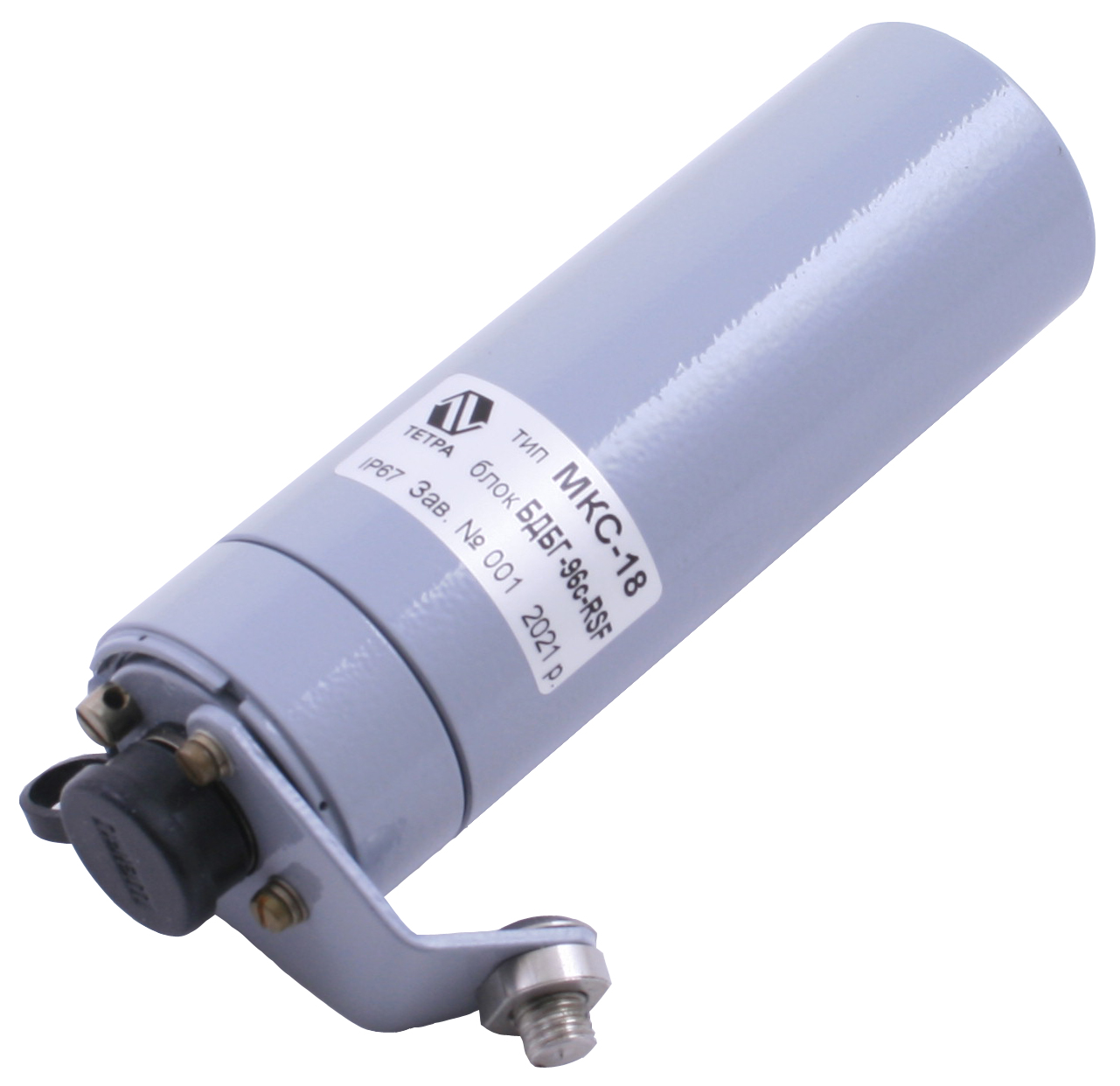

BDBG-96s-RSF - γ

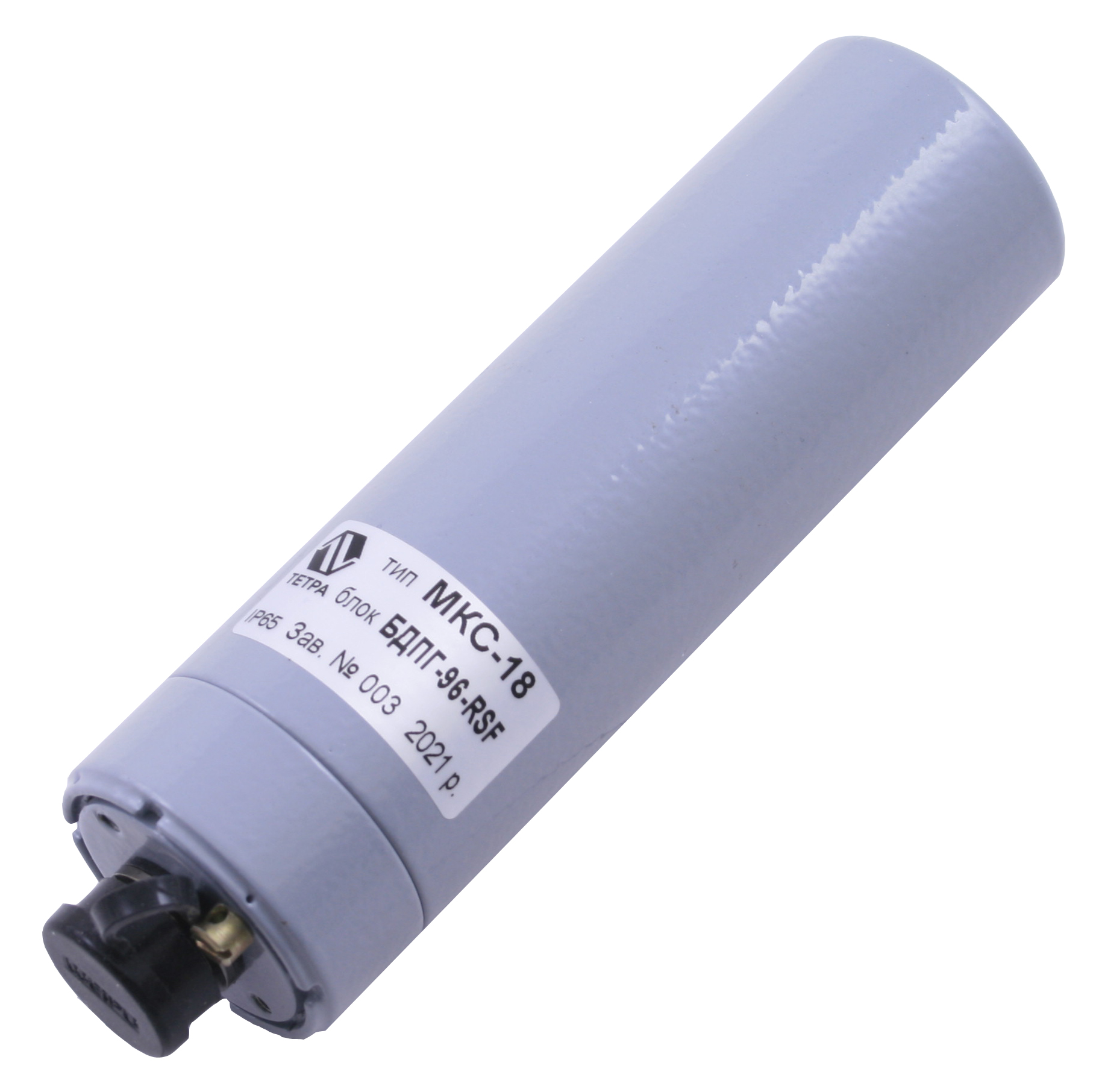

BDPG-96-RSF - γ

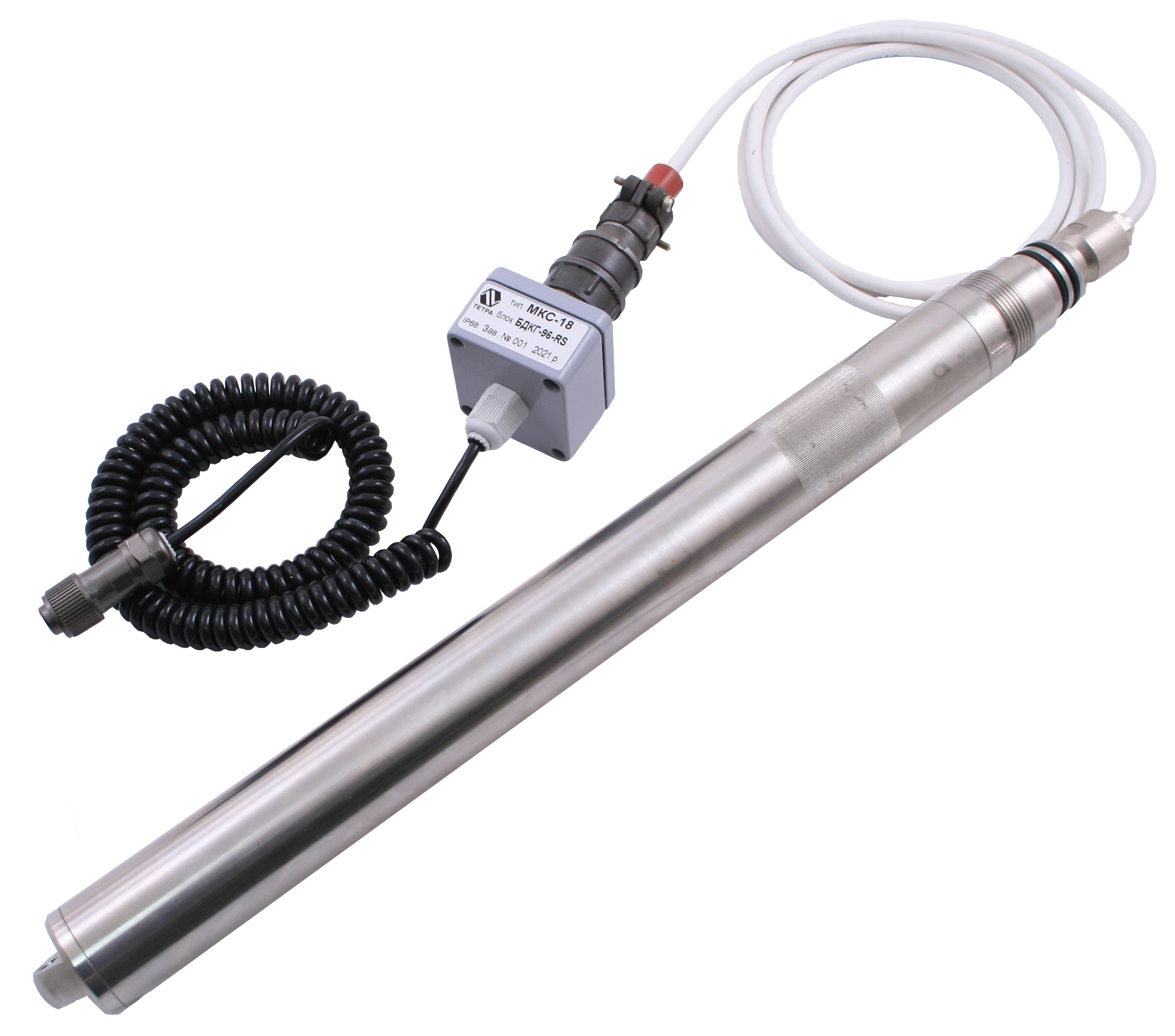

BDKG-96-RS - γ
